1. Product fabric and working principle

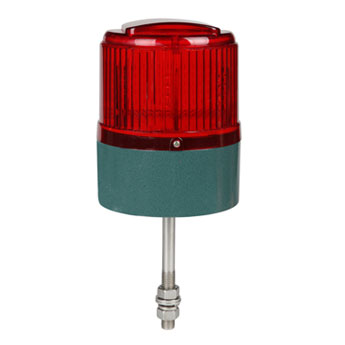

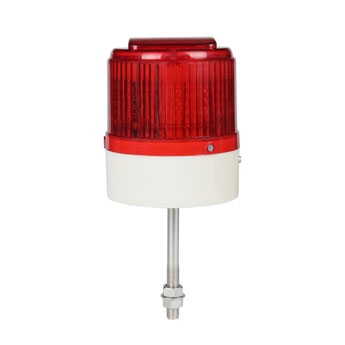

TS-T type solar aviation flash barrier light is composed of solar panels, Ni-h battery power supply system, light emitting diode as a light source, through low energy consumption control circuit, so that it can be charged during the day, shining at night, the system can work in minus 40°C low temperature and rainy days for more than 5 days.
TS-T solar aviation obstacle light source uses high-power LED, its life is 100,000 hours, according to 10 hours of night lighting, can be used for more than 22 years.
2. Flicker mode
20-60 times per minute, the control system is built into the lamp body.
3. Light control
Solar cells are controlled so that they charge during the day and shine at night.
4. Dry battery
Ni-H capacity 1.2V/4000mA/h or 3.6V/9000mA/h
5. Technical parameters
Model number | TS-T |
Flash frequency | 20-60 times/minute |
Light source lifetime | 100,000 hours |
Effective light intensity | ≥32cd |
Operating ambient temperature | -40 ºC —70 ºC |
Overall dimension | See chart below |
6. Installation signal
7. Instructions for use
1. Before installation and use, turn ON the switch in the ON position.
2. Place the solar lamp in a place that can fully receive sunlight.
3. if the light is not bright or weak, you can put the solar lamp in the sun for 4 hours, you can shine.
4. if stored for a long time, the solar lamp should be placed in a dry and low humidity place, and the solar lamp should be taken out and placed in the sun for three days every three months.
