TS-ZMA Power dual aviation obstacle light

National patent product, patent number: ZL2015 2 0257935.8

1. Product introduction

TS-ZMA type main and standby (same flash) aviation obstacle light is a new generation of aviation obstacle light developed and produced in strict accordance with the International Civil Aviation Organization (ICAO) standard Annex Volume 14, China civil aviation industry standard MH/T6012-1999, and the requirements of the United States Federal Aviation Administration (FAA).

Aviation obstacle lamp by AC 220V or DC48V power supply as a power supply system, with high-power light tube as a light source, light source life of 100,000 hours, according to the night lighting 10 hours calculation, can be used for more than 22 years.

The aerial obstacle light housing is made of polycarbonate and die-cast aluminum. All the devices are packaged in the lamp body, which has simple structure, light weight and overall impact resistance. It is controlled by photoelectric, automatically opened at night and automatically closed during the day.

The light is controlled by two completely independent photoelectric control systems for the main and secondary lights, usually the main light shines at night and automatically turns off during the day. When the main lamp is damaged, the backup lamp automatically starts to work instead of the main lamp.

2. Technical parameters

3. Aviation obstacle light installation

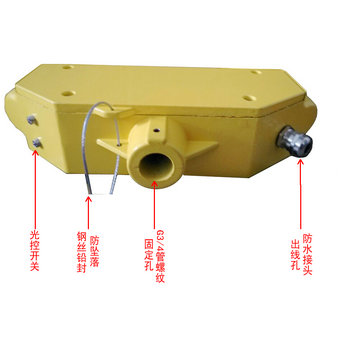

Fixed with G3/4 pipe thread

Directly connect DC48V (pay attention to the positive and negative electrodes) or AC220V power supply
